Y / YKS / YKK High Voltage Motor
The three series use different cooling arrangements. Y motors use open-circuit air cooling, YKS motors use an air-to-water heat exchanger, and YKK motors use an air-to-air heat exchanger. Enclosure protection depends on the selected series and configuration.
Select the motor according to the required output, speed, starting conditions, driven-load inertia and cooling facilities. Standard mounting is IM B3, with other arrangements subject to confirmation.
Before installation or replacement, verify the electrical ratings, shaft dimensions, foundation interfaces, overall size and maintenance space using the model-specific documentation.ration.
| Parameter | Specification |
|---|---|
| Product Series | Y / YKS / YKK |
| Motor Type | High-Voltage Three-Phase Induction Motor |

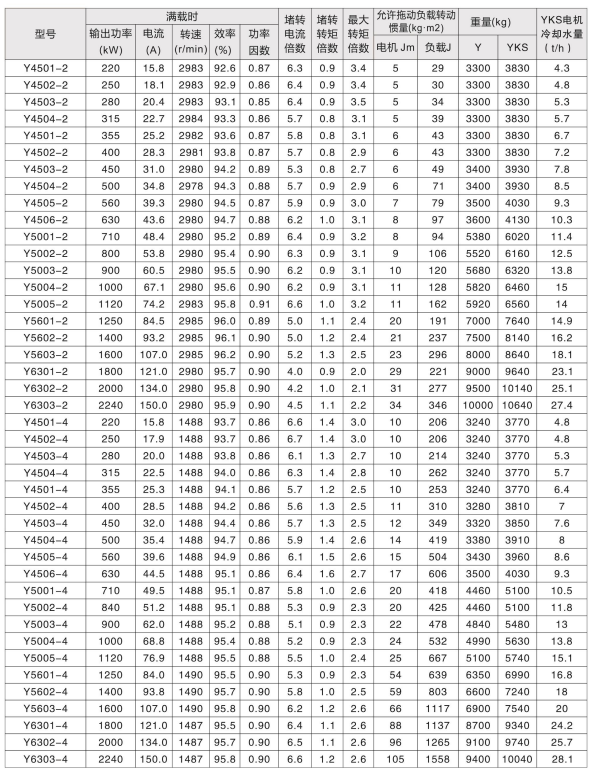

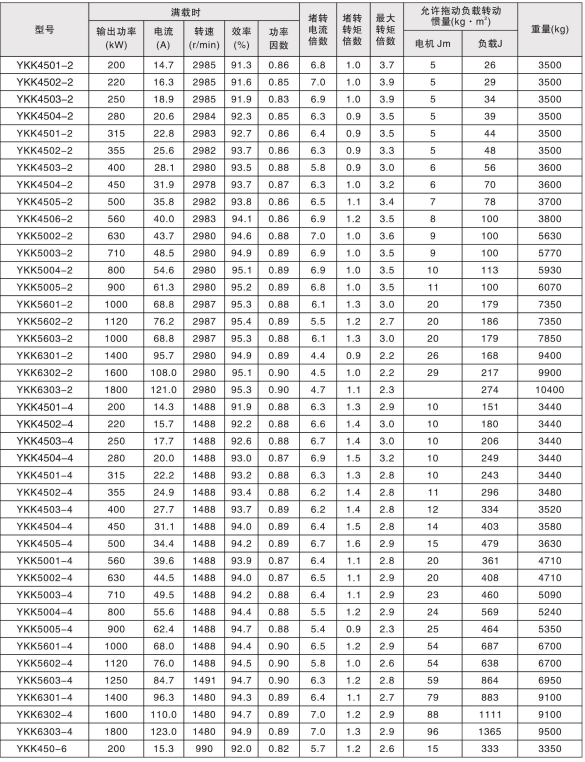

| Rated Output | Y / YKS: 220–2240 kW; YKK: 200–1800 kW, based on the supplied technical tables |
| Rated Voltage | 10 kV; alternative voltages subject to technical confirmation |
| Rated Frequency | Confirm the nameplate rating; tabulated speeds are consistent with 50 Hz operation |
| Number of Poles | 2, 4, 6, 8, 10 or 12, depending on model |
| Rated Speed | Approximately 495–2989 rpm across the supplied tables; refer to the selected model |
| Rated Current | Refer to the model-specific technical data |
| Efficiency Class | Not specified in the supplied pages |
| Rated Efficiency | Refer to the model-specific full-load efficiency |
| Power Factor | Refer to the model-specific technical data |
| Winding Connection | Follow the supplied terminal connection diagram |
| Rated Duty | S1 — Continuous Duty |
| Parameter | Specification |
|---|---|
| Frame Size | H450, H500, H560 or H630 |
| Mounting Arrangement | Standard IM B3; other arrangements, including IM B35, subject to confirmation |
| Shaft Diameter | 90–180 mm, depending on frame size and pole count |
| Shaft Extension | 170–300 mm, depending on frame size and pole count |
| Key / Keyway Dimensions | Refer to dimensions F and G in the model-specific drawing |
| Bearing Arrangement | Depends on frame size and pole count; confirm against the supplied bearing schedule |
| Net Weight | Refer to catalog-listed model weight; net weight basis to be confirmed |
| Overall Dimensions | Refer to the series-specific dimensional drawing |
Provide the required power, voltage, frequency, speed, mounting arrangement and operating duty. Include the driven-load torque, inertia, starting method, site conditions and available cooling facilities.
Y motors use open-circuit air cooling. YKS motors use an air-to-water heat exchanger, while YKK motors use an air-to-air heat exchanger. Their enclosure protection and installation requirements differ.
Yes. The air-to-water heat exchanger requires a suitable cooling-water supply. Confirm the required flow, inlet temperature, pressure and water quality for the selected motor.
Its catalog-listed air-to-air cooling arrangement does not require cooling water for the heat exchanger. Adequate airflow and clearance around the motor must still be provided.
The catalog mentions alternative-voltage versions. Submit the required voltage and frequency for confirmation of availability, ratings and dimensions.
