K Series Bevel Gear Reducer
The K series is a compact right-angle helical-bevel gear reducer designed to reduce speed and transmit torque in industrial machinery.
Product Overview
The K series is a right-angle helical-bevel gear reducer designed to reduce speed and transmit torque in industrial drive systems. Its compact layout allows the input and output shafts to be arranged at 90 degrees.
Typical applications include conveyors, material-handling equipment and processing machinery. Depending on the model, solid or hollow output shafts and foot, flange or shaft-mounted arrangements may be available.
Select the reducer according to the required output speed, torque, service factor and operating cycle. Before installation, verify shaft dimensions, mounting interfaces, permissible shaft loads and lubrication requirements using the model-specific documentation.
Typical applications include conveyors, material-handling equipment and processing machinery. Depending on the model, solid or hollow output shafts and foot, flange or shaft-mounted arrangements may be available.
Select the reducer according to the required output speed, torque, service factor and operating cycle. Before installation, verify shaft dimensions, mounting interfaces, permissible shaft loads and lubrication requirements using the model-specific documentation.
Electrical Specifications
| Parameter | Specification |
|---|---|
| Drive Configuration | Right-angle helical-bevel gear reducer with integrated motor, motor adapter or shaft input |
| Motor Type | Three-Phase AC Induction Motor; servo motor configurations available with suitable adapters |
| Rated Motor Power | 0.12–90 kW across the listed two-/three-stage configurations; capacity depends on size and ratio |
| Rated Voltage | Motor options include 220–240 V, 380–400 V, 415–440 V and 660–690 V |
| Rated Frequency | 50 Hz or 60 Hz, according to the selected motor rating |
| Motor Rated Speed | Selected according to motor pole count, supply frequency and required output speed |
| Rated Current | Specified for the selected motor power, voltage and frequency |
| Motor Efficiency Class | Depends on the selected motor package |
| Motor Protection Rating | IP55 motor packages available; special protection configurations subject to confirmation |
| Insulation Class | Class F motor packages available |
| Operating Duty | S1 continuous-duty motor packages available; intermittent duty requires separate selection |
| Brake Option | Optional brake motor; brake torque selected for the application |
| Inverter Operation | Suitable motor configuration required; verify cooling, torque and gearbox speed limits |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Gear Type | Right-Angle Helical-Bevel Gear Reducer with 90° Input/Output Arrangement |
| Gear Unit Size | Two-stage: K19, K29, K39, K49; three-stage: K37, K47, K57, K67, K77, K87, K97, K107, K127, K157, K167, K187 |

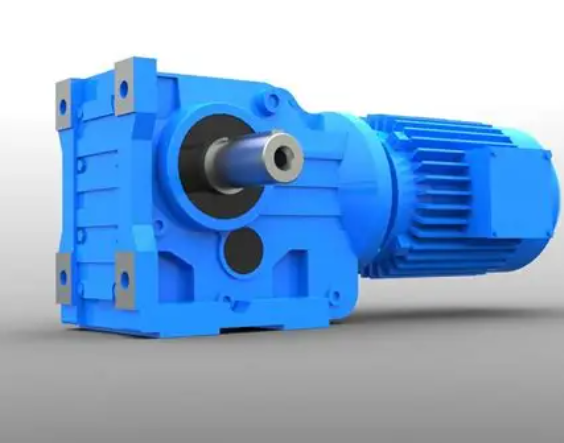

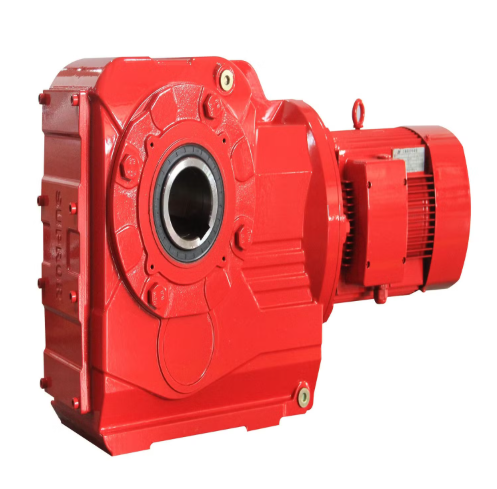

| Output Shaft | Solid shaft, keyed hollow shaft, shrink-disc hollow shaft or splined hollow shaft, depending on size |
| Mounting Arrangement | Foot-mounted, flange-mounted or shaft-mounted; B5/B14 options depend on size and configuration |
| Shaft / Bore Diameter | Solid shaft diameters: 20–190 mm; hollow bore dimensions depend on size and connection type |
| Input Connection | Integrated gearmotor, motor adapter, servo adapter or solid input shaft |
| Net Weight | Specified for the selected size, shaft arrangement and motor package |
| Overall Dimensions | Solid output shaft extensions: 40–320 mm; housing dimensions depend on configuration |
Technical Specifications
| Mechanical Specifications | Specification |
|---|---|
| Reduction Ratio | Two-stage units: 2.81–75.20 across available sizes; three-stage units: 3.98–197.37; combined units: 94–32,625 |
| Rated Output Torque | Two-stage model maximum ratings: 80–500 Nm; three-stage model maximum ratings: 200–53,000 Nm |
| Output Speed | At 1,450 rpm input: two-stage approximately 19.28–516.01 rpm; three-stage 7.35–364.32 rpm; combined 0.044–15.43 rpm |
| Permissible Input Speed | Selected according to ratio, bearing speed, thermal capacity and lubrication conditions |
| Service Factor | Selected according to load, daily operating hours, starting frequency and shock loading |
| Gear Stages | Two or three stages for standard units; additional stages for combined reduction configurations |
| Permissible Shaft Loads | Radial and axial limits specified for the selected size, speed and load application point |
| Lubrication | Gear oil lubrication; oil grade and quantity matched to mounting position and operating conditions |
| Operating Temperature | Permitted range determined by lubricant, seals, motor and thermal loading |
| Optional Features | Brake motor, reduced backlash, shrink-disc connection, splined hollow shaft or special mounting configuration |
Frequently Asked Questions
Provide the required output speed, torque, motor power, operating hours, starting frequency and mounting position. Include shock loads and any radial or axial forces acting on the output shaft.
K series reducers use a right-angle helical-bevel arrangement, while F series reducers typically use a parallel-shaft helical arrangement. Select the layout that suits your equipment and installation space.
Divide the input speed by the required output speed to estimate the ratio. Then select an available ratio and verify output torque, service factor and gearbox capacity.
Motorized units and motor-adapter configurations may be available. Confirm the motor power, electrical supply, mounting interface and any brake requirements when ordering.
Availability depends on the model. Confirm the shaft or bore diameter, connection method and installation requirements using the selected unit’s drawing.
